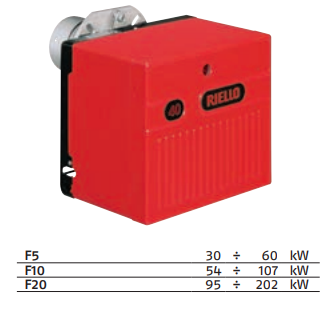

The Riello 40 F series of one stage light oil burners, is a complete range of products developed to respond to any request for light industrial applications. The Riello 40 F series is available in three different models, with an output ranging from 30 to 202 kW, divided in three different structures. All the models use the same components designed by Riello for the Riello 40 F series. The high quality level guarantees safe working. In developing these burners, special attention was paid to reducing noise, to the ease of installation and adjustment, to obtaining the smallest size possible to fit into any sort of boiler available on the market. All the models are approved by the EN 267 European Standard and conform to European Directives for EMC, Low Voltage, Machinery and Boiler Efficiency. All the Riello 40 F burners are fired before leaving the factory.
STATE OF SUPPLY
Completely automatic monobloc light oil burners, one stage operation, made up of: - Fan with forward curve blades - Metallic cover - Fixed air damper with adjustment - Single phase electric motor 230 V, 50 Hz - Combustion head fitted with: - stainless steel head cone, resistant to high temperatures - ignition electrodes - flame stability disk - Geared pump for fuel supply, fitted with: - filter - pressure regulator - attachments for fitting a pressure gauge and vacuum meter - internal by-pass for
preparing for single-pipe installations - Fuel feed solenoid valve incorporated in the pump - Photocell for flame detection - Electronic flame control equipment - Light oil nozzle - IP X0D (IP 40) protection level. StanEarE eRuiQNent - Two flexible pipes for connection to the light oil supply line - Two nipples for connection to the pump - Flange, screws and nuts for fixing - Thermal screen - Instruction handbook for installation, use and maintenance - Spare parts catalogue
